CODIGO |
MODELO |
ESPECIFICACIONES |

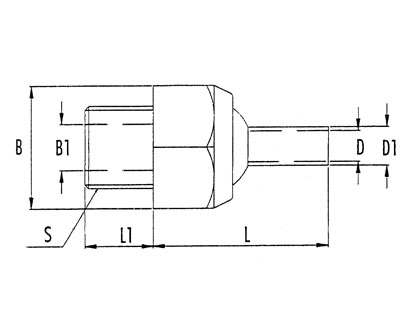

MEDIDAS (pulgada) |
||||||
D |
ROSCA(S) |
L |
L1 |
D1 |
B1 |
HEXAGONO(B) |
|||
A715.50 |
IM-8120 |
1/8 PT-DIAM 4X20L |
4 |
PT 1/8 |
20 |
10 |
6 |
6 |
17 |
A715.51 |
IM-8140 |
1/8 PT-DIAM 4X40L |
4 |
PT 1/8 |
40 |
10 |
6 |
6 |
17 |
A715.52 |
IM-8160 |
1/8 PT-DIAM 4X60L |
4 |
PT 1/8 |
60 |
10 |
6 |
6 |
17 |
A715.53 |
IM-4120 |
1/4 PT-DIAM 4X20L |
4 |
PT 1/4 |
20 |
10 |
6 |
6 |
17 |
A715.54 |
IM-4140 |
1/4 PT-DIAM 4X40L |
4 |
PT 1/4 |
40 |
10 |
6 |
6 |
17 |
A715.55 |
IM-4160 |
1/4 PT-DIAM 4X60L |
4 |
PT 1/4 |
60 |
10 |
6 |
6 |
17 |
A715.56 |
IM-8330 |
3/8 PT-DIAM 6X30L |
6 |
PT 3/8 |
30 |
13 |
8 |
8 |
24 |
A715.57 |
IM-8350 |
3/8 PT-DIAM 6X50L |
6 |
PT 3/8 |
50 |
13 |
8 |
8 |
24 |
A715.58 |
IM-8370 |
3/8 PT-DIAM 6X70L |
6 |
PT 3/8 |
70 |
13 |
8 |
8 |
24 |
A715.59 |
IM-2140 |
1/2 PT-DIAM 8X40L |
8 |
PT 1/2 |
40 |
18 |
10 |
10 |
32 |
A715.60 |
IM-2160 |
1/2 PT-DIAM 8X60L |
8 |
PT 1/2 |
60 |
18 |
10 |
10 |
32 |
A715.61 |
IM-2180 |
1/2 PT-DIAM 8X80L |
8 |
PT 1/2 |
80 |
18 |
10 |
10 |
32 |
CODIGO |
MODELO |
ESPECIFICACIONES |
MEDIDAS (mm) |
||||||
D |
ROSCA(S) |
L |
L1 |
D1 |
B1 |
HEXGONO(B) |
|||
A715.70 |
IM-1015 |
M10x1.25x diam 4 x 15L |
4 |
M10x1.25P |
15 |
10 |
6 |
6 |
17 |
A715.71 |
IM-1020 |
M10x1.25x diam 4 x 20L |
4 |
M10x1.25P |
20 |
10 |
6 |
6 |
17 |
A715.72 |
IM-1040 |
M10x1.25x diam 4 x 40L |
4 |
M10x1.25P |
40 |
10 |
6 |
6 |
17 |
A715.73 |
IM-1060 |
M10x1.25x diam 4 x 60L |
4 |
M10x1.25P |
60 |
10 |
6 |
6 |
17 |
A715.74 |
IM-2030 |
M20x1.5x diam 6 x 30L |
6 |
M20x1.5P |
30 |
13 |
8 |
10 |
24 |
A715.75 |
IM-2050 |
M20x1.5x diam 6 x 50L
|
6 |
M20x1.5P |
50 |
13 |
8 |
10 |
24 |
A715.76 |
IM-2070 |
M20x1.5x diam 6 x 70L
|
6 |
M20x1.5P |
70 |
13 |
8 |
10 |
24 |
A715.77 |
IM-2440 |
M24x2.0x diam 8 x 40L
|
8 |
M24x2.0P |
40 |
18 |
10 |
12 |
32 |
A715.78 |
IM-2460 |
M24x2.0x diam 8 x 60L
|
8 |
M24x2.0P |
60 |
18 |
10 |
12 |
32 |
A715.79 |
IM-2480 |
M24x2.0x diam 8 x 80L
|
8 |
M24x2.0P |
80 |
18 |
10 |
12 |
32 |
