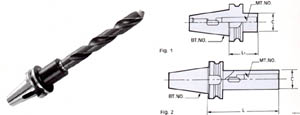

Arboles reductores con lengüeta


Arboles Reductores con Lengüeta Arboles Reductores con Lengüeta    Arboles Reductores con Lengüeta


Serie corta

CODIGO
Referencia
Figura
Cono Morse Nro.
L
C
A539.90
NT30-MTA1-25
1
MTA1
25
25
A539.91
NT30-MTA2-50
1
MTA2
50
32
A539.92
NT30-MTA3-65
1
MTA3
65
40
A540.00
NT40-MTA1-30
1
MTA1
65
40
A540.01
NT40-MTA2-40
1
MTA2
40
32
A540.02
NT40-MTA3-70
1
MTA3
70
40
A540.03
NT40-MTA4-90
1
MTA4
90
50
A540.04
NT50-MTA2-30
1
MTA2
30
32
A540.05
NT50-MTA3-30
1
MTA3
30
40
A540.06
NT50-MTA3-30
1
MTA3
30
40
A540.07
NT50-MTA4-70
1
MTA4
70
50
A540.08
NT50-MTA5-105
1
MTA5
105
65






Serie larga

CODIGO Model No. Figura Cono morse L C
A540.50
 BT30 MTA1-60 1 MT1 60 25
A540.51
 BT30 MTA2-60 1 MT2 60 32
A540.52
 BT30 MTA3-90 1 MT3 90 40
A540.10
 BT40-MTA1-45 1 MT1 45 25
A540.12
 BT40-MTA2-45 1 MT2 45 32
A540.13
 BT40-MTA2 1 MT2 120 32
A540.14
 BT40-MTA3-75 1 MT3 75 40
A540.16
 BT40-MTA4-90 1 MT4 90 50
A540.20
 BT50-MTA1-45 1 MT1 45 25
A540.23
 BT50-MTA2-45 1 MT2 45 32
A540.27
 BT50-MTA3-60 1 MT3 60 40
A540.29
 BT50-MTA4-75 1 MT4 75 50

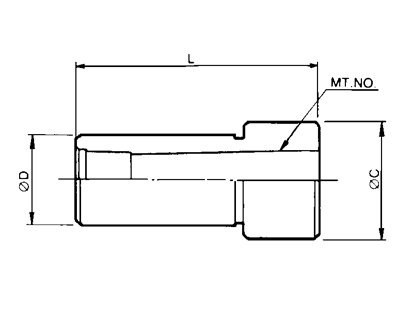

Arboles reductores cilindricos con lengüeta

CODIGO
Modelo
Diametro
Medidas
D
MT Nº
C
L
Peso(kg)
A539.20
C20-CM1
C20
C20-MT1
20
MT1
27
60
0.1
A539.21
C20-CM2
C20
C20-MT2
20
MT2
27
70
0.1
A539.22
C25-CM1
C25
C25-MT1
25
MT1
33
60
0.2
A539.23
C25-CM2
C25
C25-MT2
25
MT2
33
70
0.2
A539.24
C25-CM3
C25
C25-MT3
25
MT3
33
90
0.12
A539.25
C32-CM1
C32
C32-MT1
32
MT1
37
60
0.38
A539.26
C32-CM2
C32
C32-MT2
32
MT2
37
70
0.36
A539.27
C32-CM3
C32
C32-MT3
32
MT3
37
90
0.31
